FILE: A Guide to DeepMind's StarCraft AI Environment.ipynb
================================================
{
"cells": [
{
"cell_type": "markdown",
"metadata": {},
"source": [
"# A Guide to DeepMind's StarCraft AI Environment\n",
"\n",
"## Demo -- We're going to setup and install the necessary tools to run a pretrained Deep Q Network model on the CollectMineralShards mini-game of DeepMind's StarCraft II Environment.\n",
"\n",
"![alt text](https://cdn.technologyreview.com/i/images/20161104patrick-strackblizzcon16070a0766.jpg?sw=2360&cx=0&cy=0&cw=950&ch=633 \"Logo Title Text 1\")\n",
"\n",
"## History\n",
"\n",
"Deepmind already beat Atari Games with the Deep Q Learner\n",
"\n",
"![alt text](https://rubenfiszel.github.io/posts/rl4j/conv.png \"Logo Title Text 1\")\n",
"![alt text](https://s3-ap-south-1.amazonaws.com/av-blog-media/wp-content/uploads/2017/01/12042140/11038f3.jpg \"Logo Title Text 1\")\n",
"![alt text](https://www.intelnervana.com/wp-content/uploads/sites/53/2017/06/Screen-Shot-2015-12-21-at-11.23.43-AM-1.png \"Logo Title Text 1\")\n",
"\n",

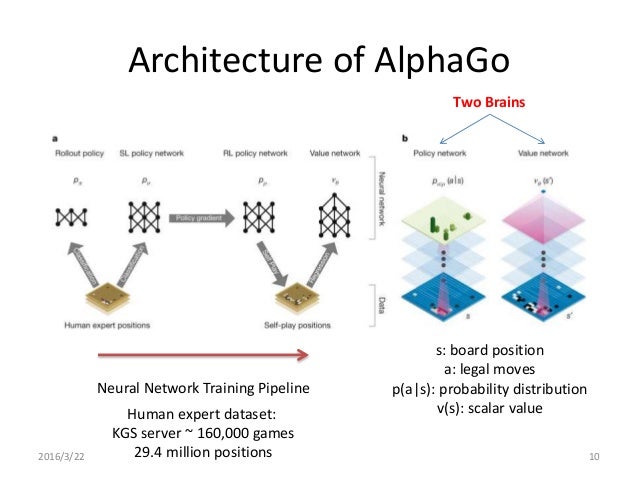

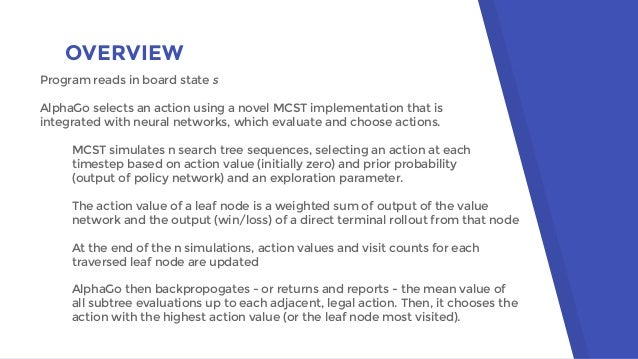

"Then they beat the \"unbeatable\" game of \"Go\" with AlphaGo\n",
"\n",
"![alt text](https://image.slidesharecdn.com/masteringthegameofgowithdeepneuralnetworksandtreesearch-160321115146/95/mastering-the-game-of-go-with-deep-neural-networks-and-tree-search-10-638.jpg?cb=1458635243 \"Logo Title Text 1\")\n",
"![alt text](https://image.slidesharecdn.com/howdeepmindmasteredthegameofgo-160903224536/95/how-deepmind-mastered-the-game-of-go-20-638.jpg?cb=1472943238 \"Logo Title Text 1\")\n",
"\n",
"And now they've set their sights on Starcraft. For an AI to play StarCraft well, it'll need\n",
"\n",
"- An effective use of memory\n",
"- an ability to plan over a long time\n",
"- The capacity to adapt plans based on new information. \n",
"- To execute something as simple as “expand your base to some location”, one must coordinate mouse clicks, camera, and available resources. This makes actions and planning hierarchical, which is a challenging aspect of Reinforcement Learning.\n",
"\n",
"Blizzard's StarCraft II API is an interface that provides full external control of StarCraft II.\n",
"\n",
"This API exposes functionality for developing software for:\n",
"\n",
"- Scripted bots.\n",
"- Machine-learning based bots.\n",
"- Replay analysis.\n",
"- Tool assisted human play.\n",
"\n",
"DeepMind's PySC2 - StarCraft II Learning Environment exposes it as a Python RL Environment. \n",
"\n",
"- A Machine Learning API developed by Blizzard that gives researchers and developers hooks into the game. This includes the release of tools for Linux for the first time.\n",
"- A dataset of anonymised game replays, which will increase from 65k to more than half a million in the coming weeks. \n",
"- An open source version of DeepMind’s toolset, PySC2, to allow researchers to easily use Blizzard’s feature-layer API with their agents.\n",
"- A series of simple RL mini-games to allow researchers to test the performance of agents on specific tasks.\n",
"- A joint paper that outlines the environment, and reports initial baseline results on the mini-games, supervised learning from replays, and the full 1v1 ladder game against the built-in AI.\n",
"\n",
"Starcraft II is a real-time strategy game developed by Blizzard entertainment, otherwise known as the makers of World of Warcraft. It's the sequel to Starcraft, a game from 1998 that many regard as one of the greatest PC games ever released. Even now, over a decade on, it's still played regularly by people all over the world; in Korea, it's so popular that there are professional leagues dedicated solely to playing the game.\n",
"\n",
"\n"
]
},
{
"cell_type": "markdown",
"metadata": {},
"source": [
"## Installation Steps\n",
"\n",
"\n",
"Steps\n",
"\n",
"1) Install pysc2\n",
"\n",
"2) Clone pysc2-examples repository\n",
"\n",
"3) Download mini-games StarCraft II Maps\n",
"\n",
"4) Install Tensorflow, baselines libraries\n",
"\n",
"5) Open the project with IntelliJ \n",
"\n",
"6) Run the training script\n",
"\n",
"7) Run the pre-trained model\n",
"\n",
"\n",
"\n",
"## Step 1 - Install pysc2\n",
"\n",
"`pip3 install pysc2`\n",
"\n",
"\n",
"## Step 2 - Git Clone psyc2 examples\n",
"\n",
"`git clone https://github.com/llSourcell/A-Guide-to-DeepMinds-StarCraft-AI-Environment`\n",
"\n",
"## Step 3 - Download mini-games StarCraft II Maps\n",
"\n",
"https://github.com/deepmind/pysc2/releases/download/v1.0/mini_games.zip\n",
"\n",
"save these maps to StarCraft II/Maps \n",
"\n",
"## Step 4 - Install Tensorflow + OpenAI Baselines\n",
"\n",
"`pip3 install tensorflow`\n",
"`pip3 install baselines`\n",
"\n",
"## Step 5 - Open the Project with Intellij\n",
"\n",
"### Start training\n",
"\n",
"`python3 train_mineral_shards.py`\n",
"\n",
"### Open project , Python 3 SDK \n",
"\n",
"## Step 6 Run training script\n",
"\n",
"Right click the train_mineral_shards.py and select [Run 'train_mineral_shards'] menu.\n",
"\n",
"This is the brief explanation of console logs.\n",
"\n",
"- steps : The number of commands that we sent to marines.\n",
"- episodes : The number of games that we played.\n",
"- mean 100 episode reward : mean rewards of last 100 episodes.\n",
"- mean 100 episode min… : mean minerals of last 100 episodes.\n",
"- % time spent exploring : The percentage of Exploring (Exploration & Exploit)\n",
"\n",
"\n",
"## Step 7 Run pre-trained model\n",
"\n",
"- Right click the enjoy_mineral_shards.py and select [Run 'enjoy_mineral_shards'] menu.\n",
"\n",
"Then we can see the pre-trained agent of CollectMineralShards map.\n"
]
},
{
